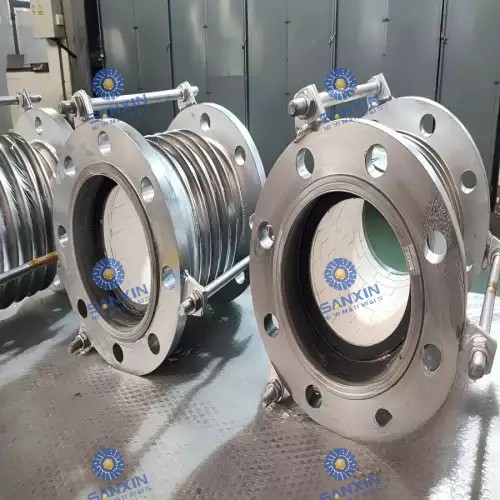

Ceramic Lined Sleeve Expansion Joints

Ceramic-lined sleeve expansion joints are high-performance engineered pipe connectors designed to withstand severe abrasion, chemical corrosion, and extreme thermal stress. Tailored for high-wear industrial pipeline systems with frequent vibration and thermal displacement, these ceramic lined expansion joints effectively absorb axial, lateral, and angular pipe movements while maintaining outstanding long-term durability. They serve as an upgraded alternative to ordinary steel expansion joints, perfectly solving common failure problems such as rapid wall thinning, corrosion leakage, and thermal deformation in harsh industrial piping systems.Built with a flexible steel sleeve structure and integrated high-purity ceramic lining, the product combines the mechanical toughness of steel and the extreme wear resistance of advanced ceramics. The internal lining is usually made of high-hardness alumina or silicon carbide ceramic, firmly bonded to the steel base through mature SHS high-temperature synthesis technology. While the outer steel layer ensures structural strength and flexible displacement capability, the inner ceramic layer provides superior anti-abrasion, anti-corrosion, and thermal insulation performance. This dual-structure design enables ceramic-lined sleeve-type expansion joints to operate stably in high-temperature, high-speed, and high-impact material conveying environments for a long service life.

1. Product Overview & Working Principle

A sleeve expansion joint is a essential pipe fitting used to absorb axial expansion, contraction, vibration, and mechanical misalignment in piping systems. The standard structure consists of an inner sliding sleeve and an outer sleeve casing, achieving flexible linear displacement while maintaining complete pipeline tightness through high-performance sealing components.Different from ordinary carbon steel sleeve joints, Sanxin ceramic lined sleeve expansion joints add a dense and smooth ceramic wear-resistant layer on the inner wall. The rigid ceramic lining isolates the flowing medium from the steel substrate, fundamentally eliminating abrasion erosion and chemical corrosion. It is a low-maintenance, cost-effective, and high-reliability solution for harsh industrial pipeline displacement compensation.

2. Core Product Features

• Powerful Axial Displacement Compensation: Effectively absorbs pipeline thermal expansion, contraction, and mechanical vibration displacement, supporting stable operation of long-distance industrial piping systems.

• Extreme Wear Resistance: Inner alumina ceramic lining reaches Mohs hardness 9, delivering 20 times higher wear resistance than ordinary carbon steel, greatly reducing pipeline wall loss caused by high-speed particle scouring.

• Excellent Corrosion & Thermal Stability: Resists acid-base corrosion, oxidation, and high-temperature thermal shock, adapting to complex chemical and thermal working conditions from -50°C to 800°C.

• Superior Sealing Performance: Equipped with high-temperature resistant fluororubber, graphite, and nitrile sealing materials to ensure zero leakage under high pressure and frequent displacement.

• Simple & Reliable Structure: Minimal moving parts, compact sleeve sliding design, easy on-site installation, and low daily maintenance cost.

• Customizable Lining & Structure: Supports alumina, silicon carbide and other ceramic lining materials, as well as diversified connection methods and size customization.

3. Standard Technical Specifications

Item

4. Advanced SHS Manufacturing Process

Sanxin ceramic lined sleeve expansion joints adopt the national 863 high-tech SHS (Self-Propagating High-Temperature Synthesis) centrifugal manufacturing process. Through instantaneous high-temperature exothermic reaction above 2000°C, dense corundum ceramic layers are uniformly synthesized on the inner wall of the steel pipe. The alumina ceramic melting point reaches 2045°C, forming a single stable crystal structure with no pores or gaps.Different from ordinary manual sticking ceramic tiles, SHS integral synthesis ensures the ceramic layer and steel substrate form a metallurgical composite structure with extremely high bonding strength. It will not peel or fall off during long-term pipeline vibration, thermal expansion and contraction, ensuring permanent wear resistance and stability.

5. Core Ceramic Material Performance Parameters

Performance  Item

6. Professional Wear Resistance Test Data

Authoritative sand injection and sludge scouring tests verify that SHS ceramic lined steel pipes far outperform ordinary steel and common ceramic pipes in wear resistance:

Test Type

Test results fully prove that Sanxin ceramic lined expansion joints have extremely low wear loss, effectively extending pipeline service life by more than 10 times compared with traditional steel fittings.

7. Industrial Application Scenarios

Ceramic lined sleeve expansion joints are widely applicable for high-abrasion, high-temperature, and corrosive medium conveying pipelines in multiple industries:

• Power Generation: Fly ash, slag, and desulfurization slurry conveying pipelines

• Mining Industry: Mineral powder, ore slurry, and tailings conveying systems

• Chemical Processing: Corrosive liquid and high-temperature powder pipelines

• Metallurgy & Steel: High-temperature flue gas and metal powder piping

• Wastewater Treatment: Abrasive and corrosive sewage pipeline systems

• Oil & Gas: High-wear particle-containing medium conveying pipelines

8. Sanxin Fast Emergency Delivery Case

Sanxin New Materials’ professional ceramic production and installation teams fully completed all preliminary preparation work in advance, including precision cutting of alumina ceramic rings and standardized arrangement of wear-resistant ceramic tiles, laying a solid foundation for efficient and high-quality lining construction.After the strict inspection and qualified acceptance of all steel base components, Sanxin New Materials abandoned conventional ordinary freight methods. Instead, we adopted premium expedited logistics solutions with higher costs to directly deliver all raw materials and accessories to our exclusive production workshop, drastically shortening overall transit time and reserving sufficient production cycles for emergency orders.As soon as the materials arrived at the workshop, our production team launched overtime streamlined operations, rushing to finish full-process ceramic lining treatment and precision processing of wear-resistant ceramic ring-lined expansion joints with maximum efficiency and strict quality standards.Relying on seamless collaborative linkage from sales on-site coordination, procurement scheduling, and quality inspection supervision to efficient production execution, the Sanxin New Materials team demonstrated outstanding professional literacy and rigorous responsibility. We successfully completed the whole process from material preparation, customized processing to finished product delivery within only 9 days, promptly delivering high-quality ceramic lined expansion joints to the customer’s project site. This efficient response effectively solved the customer’s sudden production guarantee problem and completely resolved the urgent equipment shutdown crisis.Adhering to the core service tenet of “Customer First, Respond to Customer Urgencies Priority”, Sanxin New Materials continuously optimizes emergency order response mechanisms, upgrades flexible production scheduling capabilities, and improves overall service efficiency. We have always been a reliable and trustworthy advanced ceramic solution partner for industrial clients, capable of efficiently tackling various urgent and difficult production challenges and supporting customers’ stable and sustainable operational production.
