Sanxin New Materials Co., Ltd. is a leading innovator in advanced ceramics manufacturing, offering a diverse portfolio of products such as ceramic milling balls, nanoparticles, and abrasion-resistant ceramics. Among its most technologically advanced offerings are silicon nitride ceramic balls produced through isostatic pressing, which have become essential components in high-precision and high-performance applications across various industries.

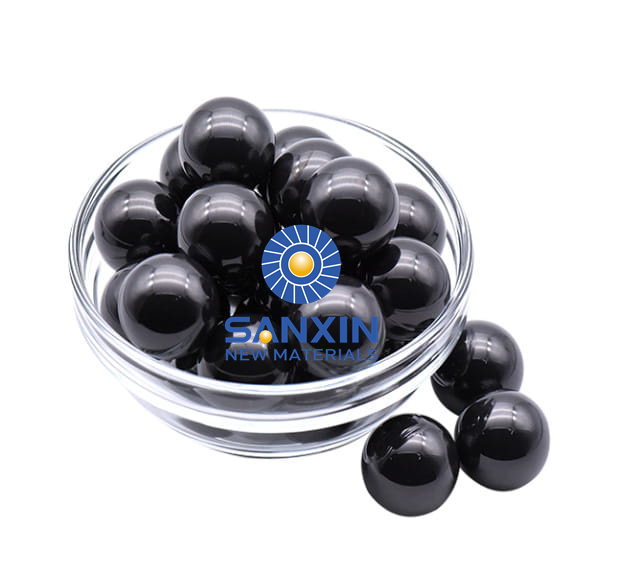

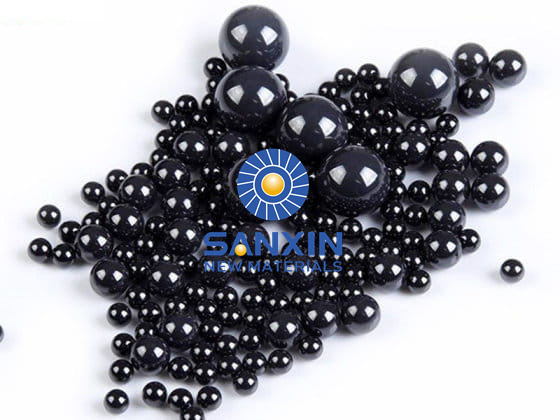

Silicon nitride (Si₃N₄) ceramic balls are distinguished by their exceptional mechanical strength, thermal stability, and wear resistance. Sanxin leverages the isostatic pressing technique to produce these balls, achieving superior density and uniformity that translate into outstanding durability and performance. These ceramic balls are integral to industries requiring materials that can withstand extreme mechanical stresses, high temperatures, and corrosive environments.
Silicon nitride is a next-generation ceramic material offering a unique combination of properties that outperform traditional materials like steel or alumina in many respects:
: Silicon nitride exhibits fracture toughness values ranging from 6 to 10 MPa·m½, significantly higher than alumina and comparable or superior to zirconia, enabling it to resist crack propagation under stress.
: It maintains structural integrity at temperatures up to 1200–1400°C, making it suitable for high-temperature applications where metals might fail or deform.
: Silicon nitride offers excellent resistance to wear, corrosion, and oxidation, which is critical in harsh chemical or abrasive environments.
: With a density around 3.2 g/cm³, silicon nitride is much lighter than steel (~7.8 g/cm³), reducing inertia in rotating parts. Its low thermal expansion coefficient minimizes dimensional changes under temperature fluctuations.
: Its inertness and resistance to wear make it suitable for medical implants and surgical instruments.
These combined properties make silicon nitride ceramic balls ideal for applications demanding high reliability, precision, and longevity.
Isostatic pressing is a sophisticated forming process in which ceramic powder is subjected to uniform pressure from all directions within a fluid medium, typically in a flexible mold. This uniform pressure compacts the powder into a dense, defect-free shape, crucial for high-performance ceramic components.
In cold isostatic pressing, mixed silicon nitride powders are placed in a flexible mold and compressed under high pressure in a fluid-filled chamber at room temperature. The uniform pressure ensures even compaction, preventing density variations, cracks, or voids that could compromise mechanical integrity.
Hot isostatic pressing combines high temperature with isotropic high-pressure gas (100–300 MPa) to promote complete densification of silicon nitride ceramics. HIP eliminates residual porosity and internal defects, resulting in ceramics with superior mechanical properties, including enhanced strength and fracture toughness. Although HIP is more costly and technically demanding than other sintering methods, it produces premium-grade silicon nitride balls that meet stringent industry standards such as ASTM F2094 Grade II.
: The isotropic pressure prevents anisotropy and ensures homogeneity throughout the ceramic ball.
: Minimizes internal cracks, voids, and flaws that can initiate failure under stress.
: Increases bending strength, fracture toughness, and wear resistance.
: Enables tight tolerances and smooth surface finishes essential for high-speed bearing applications.
By employing isostatic pressing, Sanxin produces silicon nitride ceramic balls that exhibit consistent quality and superior performance in demanding conditions.
The production of silicon nitride ceramic balls at Sanxin involves several critical steps to ensure high reliability and performance:
: High-purity silicon nitride powders are selected, often combined with sintering additives such as alumina (Al₂O₃), magnesia (MgO), yttria (Y₂O₃), and lanthana (La₂O₃) to enhance densification and mechanical properties.
: Powders are thoroughly mixed and sometimes coated or surface-oxidized to improve sintering behavior and particle bonding.
: The powder mixture is placed in flexible molds and subjected to cold isostatic pressing to form green bodies with uniform density.
: The green bodies undergo gas pressure sintering (GPS) or hot isostatic pressing (HIP) to achieve near-full density and eliminate residual porosity.
: Post-sintering processes include grinding, lapping, and polishing to achieve precise dimensions and surface finishes required for bearing and precision applications.
: Each batch undergoes rigorous inspection for density, mechanical strength, dimensional accuracy, and surface quality to meet international standards.
This meticulous process ensures that Sanxin’s silicon nitride balls deliver exceptional performance in their end-use environments.
Silicon nitride ceramic balls produced by isostatic pressing have found critical applications in a wide range of industries due to their unique properties:
: Silicon nitride balls are used in aerospace bearings that operate at high speeds and under heavy loads, benefiting from their low weight, high strength, and thermal stability.
: Their resistance to thermal shock and high temperatures makes them suitable for turbine rotors and engine parts.
: Silicon nitride balls ensure precise control and durability in fuel injectors, withstanding corrosive fuels and high pressures.
: Lightweight and wear-resistant silicon nitride balls reduce energy loss and improve drivetrain efficiency.
: Their thermal shock resistance and corrosion resistance enhance performance and longevity in harsh engine environments.
: Biocompatibility and wear resistance make silicon nitride balls ideal for implants and precision surgical tools.
: Their mechanical strength supports load-bearing applications while ensuring safety and durability.
: Silicon nitride balls resist chemical attack and thermal degradation in semiconductor processing equipment, maintaining purity and reliability.
: Their corrosion resistance and mechanical strength ensure long service life in aggressive chemical environments.
: Silicon nitride balls contribute to the durability and precision of cutting tools and high-speed bearings in industrial machinery.
The versatility of silicon nitride ceramic balls, especially those made by isostatic pressing, enables them to meet the stringent demands of these critical sectors.
When selecting ceramic materials for high-performance applications, silicon nitride offers a balanced combination of properties compared to other ceramics such as zirconia and alumina:
| Property | Silicon Nitride (Si₃N₄) | Zirconia (ZrO₂) | Alumina (Al₂O₃) |
|---|---|---|---|
| Density (g/cm³) | ~3.2 | ~6.0 | ~3.9 |
| Fracture Toughness (MPa·m½) | 6–10 | 5–10 | 3–4 |
| Max Use Temperature (°C) | 1200–1400 | 1000 | 1500 |
| Wear Resistance | Excellent | Very Good | Good |
| Thermal Shock Resistance | Excellent | Good | Moderate |
Sanxin New Materials Co., Ltd. emphasizes stringent quality control throughout the production lifecycle of silicon nitride ceramic balls. From selecting premium raw materials to employing advanced forming and sintering technologies, every step is optimized for excellence.
The company’s R&D team continuously explores innovations such as:
Enhanced sintering additives and powder surface treatments to improve densification and mechanical properties.
Advanced gelcasting and coating techniques combined with isostatic pressing to produce ceramics with high reliability and uniformity.
Tailored surface finishes and dimensional tolerances to meet specific customer requirements in precision industries.
Sanxin’s decades of experience and state-of-the-art manufacturing facilities enable it to deliver customized ceramic solutions that address evolving industrial challenges.
Sanxin offers expert consultation and product customization for clients seeking high-performance ceramic balls and related materials. Their product range includes:
Silicon nitride ceramic balls manufactured via cold and hot isostatic pressing.
Ceramic grinding balls and abrasion-resistant ceramics.
Nanopowder materials for advanced applications.
For inquiries and orders, Sanxin can be reached via:
WhatsApp: +86 19070858212
Email: sales@beadszirconia.com
Website: www.beadszirconia.com
Silicon nitride ceramic balls produced by isostatic pressing represent a pinnacle of ceramic engineering, combining superior mechanical strength, thermal stability, wear resistance, and dimensional precision. Sanxin New Materials Co., Ltd.’s expertise in this technology ensures products that meet the highest standards required by aerospace, automotive, medical, semiconductor, and chemical industries.
By choosing Sanxin’s isostatically pressed silicon nitride ceramic balls, industries gain access to durable, lightweight, and reliable components that elevate the performance and longevity of critical machinery and devices. This makes them a future-proof solution for high-performance engineering challenges.
