In the steel industry, where raw materials are crushed, mixed, and transported under extreme conditions, equipment durability is not just a matter of efficiency—it’s a cornerstone of profitability. From the moment iron ore and coke enter the plant to the final stages of slag removal, every piece of equipment faces relentless wear: abrasive particles scratch surfaces, high-temperature materials degrade components, and constant impact weakens even the toughest metals. Traditional wear-resistant materials like manganese steel, once the industry standard, now struggle to keep up with modern steel production demands. Frequent replacements, unplanned downtime, and rising maintenance costs have become persistent pain points—until ceramic wear-resistant liners emerged as a transformative solution.
Steel production is a harsh environment for equipment. Let’s break down the key challenges that plague traditional materials like manganese steel, cast iron, and rubber liners:
Iron ore, coke, and sinter—raw materials in steelmaking—are highly abrasive. When these materials flow through chutes, mix in drums, or pass through pipes, they act like sandpaper on equipment surfaces. Manganese steel, despite its reputation for “work hardening,” begins to wear after just 3–6 months in high-abrasion zones like blast furnace hoppers or mixer drums.
A typical 1,000-ton-per-day steel plant might spend $50,000 annually on replacing manganese steel liners in its drum mixers alone. Worse, each replacement requires a 4–8 hour shutdown—costing an additional $20,000–$40,000 in lost production per incident. Over a year, these costs add up to hundreds of thousands of dollars, not to mention the labor and logistics of sourcing and installing new liners.
Steel production involves extreme heat: blast furnaces operate at 1,500°C, and even secondary equipment like coke bunkers or slag conveyors handle materials at 300–800°C. Traditional materials struggle here:
Manganese steel loses hardness at temperatures above 300°C, accelerating wear.
Rubber liners melt or crack under sustained heat, becoming useless in weeks.
Cast iron becomes brittle at high temperatures, prone to cracking under impact.
This thermal stress forces plants to replace liners in high-heat zones (e.g., blast furnace discharge chutes) as often as every 2–3 months, disrupting production schedules.
Sticky materials like sinter mix or wet slag often adhere to equipment surfaces, a problem called “buildup.” In drum mixers, buildup can reduce effective volume by 10–15% over time, forcing operators to slow production to avoid overload. Manganese steel liners, with their rough surfaces, exacerbate this: material clings to scratches and dents, creating a cycle of inefficiency.
To combat buildup, plants often stop production for manual cleaning—another source of downtime. A single 2-hour cleaning of a drum mixer in a medium-sized plant can cost $10,000 in lost output.
Replacing worn liners isn’t just costly—it’s dangerous. Workers must enter confined spaces (e.g., hoppers, mixer drums) or work near high-temperature equipment, risking burns, falls, or exposure to dust. The more often maintenance is required, the higher the risk of accidents. In 2023, a major steel plant reported 12 safety incidents related to liner replacement, resulting in lost workdays and regulatory fines.
These challenges—abrasion, heat, buildup, and safety—create a “wear tax” that erodes steel plant profitability. For decades, there was no viable alternative to traditional materials. That changed with the development of toughened alumina ceramic wear-resistant liners.

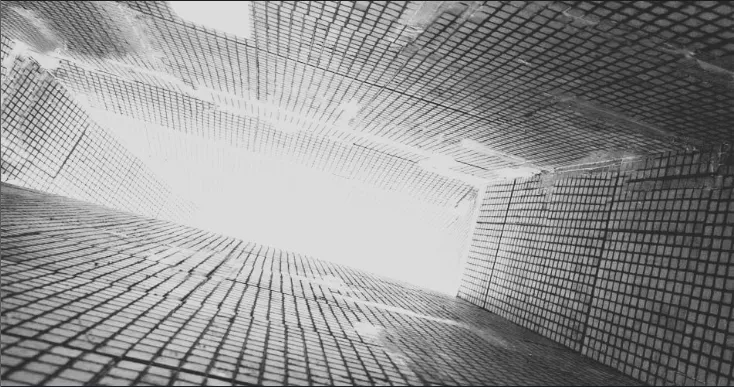

Ceramic wear-resistant liners are not just “harder metal”—they’re a leap in material engineering. Our liners, made from toughened alumina ceramics (Al₂O₃) reinforced with zirconia nanoparticles, are designed to thrive in the harshest steel plant environments. Let’s unpack their technical advantages and why they outperform traditional materials.
Toughened alumina ceramics have a surface hardness of 90–95 HRA (Rockwell A), compared to 50–55 HRA for manganese steel. This hardness translates to exceptional abrasion resistance: in lab tests, ceramic liners withstood 50,000 cycles of abrasive particle impact with minimal wear, while manganese steel liners showed significant damage after 5,000 cycles.
Why does this matter? In high-abrasion zones like sinter mix chutes, a ceramic liner can last 10–20 times longer than manganese steel. A steel plant in Hebei Province, China, replaced manganese steel liners in its sinter chutes with our ceramic liners in 2021; the ceramic liners are still in use today, with only minor wear—saving 12 replacement cycles and $300,000 in maintenance costs over three years.
Alumina ceramics retain their properties even at extreme temperatures:
They remain stable up to 1,600°C (far exceeding the 800–1,200°C range of most steel plant equipment).
Unlike metal, they don’t soften or oxidize under heat.
They have low thermal conductivity, reducing heat transfer to underlying equipment and protecting steel structures from warping.
This makes them ideal for high-heat areas like blast furnace discharge hoppers, coke bunkers, and slag conveying systems. A steel mill in Shanxi tested our ceramic liners in a blast furnace hopper (operating at 800–1,000°C) and found they lasted 18 months—compared to 2 months for manganese steel liners.
Ceramic liners have a polished, non-porous surface with a friction coefficient of 0.15–0.2 (half that of manganese steel). This means materials like wet sinter or slag slide off instead of sticking. In drum mixers, this eliminates buildup, keeping the drum’s effective volume consistent and reducing the need for cleaning.
A case study at a Jiangsu steel plant illustrates this: after installing our ceramic liners in its drum mixer, buildup decreased by 90%. The plant reduced cleaning frequency from once per week to once every three months, saving 48 hours of downtime annually and increasing mixer throughput by 8%.
Early ceramic materials were brittle, prone to cracking under heavy impact. Our liners solve this with a “toughening” process: zirconia nanoparticles (0.5–2% by weight) are added to the alumina matrix, creating micro-cracks that absorb impact energy instead of spreading. The result is a ceramic that combines hardness with toughness—able to withstand the impact of falling coke or iron ore lumps.
In testing, a 10kg coke lump dropped from 2 meters onto our ceramic liner caused no damage; the same test shattered a standard alumina ceramic liner and dented a manganese steel plate. This toughness makes them suitable for high-impact zones like blast furnace charging chutes.
Steel plant environments are often corrosive: slag contains acidic compounds, and ash handling systems expose equipment to moisture and chemicals. Manganese steel corrodes over time, weakening its structure, but alumina ceramics are inert—resistant to acids, alkalis, and moisture. This makes ceramic liners ideal for ash removal pipes, slurry transport lines, and slag processing equipment.
A steel plant in Liaoning replaced steel pipes with our ceramic-lined pipes in its ash removal system. The original steel pipes needed replacement every 6 months due to corrosion; the ceramic-lined pipes are still functional after 3 years.
| Property | Manganese Steel | Rubber Liners | Our Ceramic Liners | Advantage |
| Hardness (HRA) | 50–55 | <30 | 90–95 | Ceramic (abrasion resistance) |
| Max Operating Temp | 300°C (softens above) | 150°C (melts above) | 1,600°C | Ceramic (high-heat stability) |
| Wear Life (Sinter Chutes) | 3–6 months | 1–2 months | 36–60 months | Ceramic (10–20× longer) |
| Friction Coefficient | 0.3–0.4 | 0.4–0.5 | 0.15–0.2 | Ceramic (anti-buildup) |
| Impact Resistance | Moderate (dents) | Low (tears) | High (no damage) | Ceramic (toughness) |
These properties make ceramic liners a transformative solution for steel plants—addressing the root causes of wear, downtime, and inefficiency that have plagued the industry for decades.
Key Applications in Steel Plants: Where Ceramic Liners Make the Biggest Impact
Ceramic wear-resistant liners aren’t a one-size-fits-all solution, but they excel in specific steel plant applications. Below, we break down their use cases, with real-world results from plants that have adopted them.
Drum mixers are critical in steel production, blending iron ore, coke, and fluxes into a uniform sinter mix. Traditional mixers suffer from two issues:
Abrasion from abrasive materials wears down steel liners.
Wet mix sticks to the drum, reducing efficiency and requiring frequent cleaning.
Our ceramic liners solve both. Their hardness resists abrasion, and their smooth surface prevents buildup.
Before: Manganese steel liners in a 5m-long drum mixer required replacement every 4 months. Buildup reduced throughput by 10%, and weekly cleaning caused 2 hours of downtime.
After: Installing our ceramic liners (10mm thick) extended liner life to 36 months. Buildup decreased by 90%, eliminating weekly cleaning. Throughput increased by 8%, and annual maintenance costs dropped by $180,000.
Blast furnaces operate at extreme temperatures, and their discharge hoppers and charging chutes handle hot, heavy materials (coke, iron ore, slag) that wear down equipment.
Before: Manganese steel liners in the discharge hopper (800–1,000°C) lasted just 2 months. Frequent replacements caused 8 hours of downtime quarterly.
After: Our ceramic liners (12mm thick) withstood the heat and impact, lasting 18 months. Downtime for replacements dropped to once every 18 months, saving $240,000 in lost production annually.
Coke is hard and abrasive, and its movement through bunkers and conveyors wears down steel surfaces. Ceramic liners protect these areas from wear.
Before: A coke bunker with manganese steel liners needed liner replacements every 3 months, with visible wear (scratches and thinning) after just 1 month.
After: Our ceramic liners (15mm thick) showed minimal wear after 12 months. The bunker now requires liner checks once yearly, reducing maintenance costs by $90,000 annually.
Ash and slurry transport pipes face a double threat: abrasion from particles and corrosion from moisture. Steel pipes fail quickly, but ceramic-lined pipes combine steel’s structural strength with ceramic’s wear and corrosion resistance.
Before: Steel pipes in the ash removal system corroded and wore through every 6 months, requiring $50,000 in replacement costs annually.
After: Our ceramic-lined pipes (steel pipe with 8mm ceramic liner) lasted 36 months with no signs of wear or corrosion. Replacement costs dropped by 83%, saving $415,000 over 3 years.
Slag—molten or solid—is highly abrasive and often corrosive. Slag conveyors, crushers, and chutes need liners that resist both wear and heat.
Before: Rubber liners on a slag conveyor lasted 1 month before melting or tearing. Manganese steel liners lasted 2 months but warped under heat.
After: Our ceramic liners (10mm thick) withstood slag temperatures (600–800°C) and abrasion, lasting 12 months. Annual liner costs dropped from $240,000 to $20,000.
Adopting ceramic liners requires more than just replacing old liners—they demand careful engineering to ensure optimal performance. Here’s what steel plant engineers need to know:
Ceramic liners are available in thicknesses from 5mm to 20mm, depending on the application:
Low-abrasion areas (e.g., ash pipes with fine particles): 5–8mm liners.
High-abrasion/impact areas (e.g., blast furnace chutes): 12–20mm liners.
Our engineers work with plants to conduct “wear mapping”—identifying high-wear zones and recommending liner thickness and placement. For example, in a drum mixer, the “impact zone” (where material enters) may use 15mm liners, while other areas use 10mm liners to balance cost and performance.
Ceramic liners are attached to equipment surfaces using one of three methods, depending on the application:
Adhesive bonding: High-temperature epoxy adhesives secure liners to flat surfaces (e.g., drum mixer walls). Best for low-impact areas.
Mechanical fastening: Liners are drilled and bolted to equipment (e.g., hoppers) for high-impact zones where adhesives might fail.
Embedded design: Liners are cast into steel plates, creating a “ceramic-steel composite” for pipes and curved surfaces (e.g., chutes).
Our team helps select the right method: a blast furnace chute, for example, uses mechanical fastening to withstand impact, while a drum mixer uses adhesive bonding for a smooth surface.
Ceramic liners add minimal weight (alumina is 3.6g/cm³, slightly lighter than steel’s 7.8g/cm³), so they rarely require equipment modifications for structural support. However, in rotating equipment like drum mixers, balance is critical: liners must be installed evenly to avoid vibration. We provide precision-cut liners (tolerance ±0.5mm) to ensure balanced rotation.
Abrasion often concentrates at “transition zones”—where liners meet unlined surfaces (e.g., the edge of a hopper). We design “overlapping” liners that extend 5–10cm beyond the wear zone, protecting these vulnerable areas. We also add “edge guards” (thickened ceramic strips) to high-wear corners.
For critical equipment, we recommend a phased approach:
Pilot test: Install liners in a small section of the equipment (e.g., one side of a hopper) to measure wear and performance.
Full installation: Expand to the entire equipment once results are validated.
Monitoring: Use wear sensors or regular inspections to track liner condition and plan maintenance proactively.
The benefits of ceramic liners go beyond durability—they create tangible economic and environmental value for steel plants.
Fewer replacements mean lower spending on labor, materials, and equipment rental. A mid-sized steel plant using ceramic liners across key equipment can save $500,000–$1.2 million annually in maintenance costs.
Unplanned downtime for liner replacement and cleaning is eliminated. For a plant producing 10,000 tons of steel daily, 1 hour of downtime costs ~$20,000. Ceramic liners reduce annual downtime by 40–60 hours, adding $800,000–$1.2 million in production value.
Buildup in drum mixers and chutes forces equipment to work harder (e.g., motors use more power to rotate a partially blocked drum). By preventing buildup, ceramic liners reduce energy consumption: a Jiangsu plant saw a 5% drop in mixer motor energy use after installing ceramic liners.
Fewer maintenance cycles mean fewer workers exposed to high-temperature, high-risk environments. A plant that reduces liner replacements from 12 times to 2 times annually cuts safety risks by 83%, lowering accident rates and regulatory compliance costs.
Ceramic liners have a longer lifecycle than traditional materials, reducing the need for raw material extraction (e.g., steel for manganese liners) and waste generation. Our liners are also recyclable—worn liners can be crushed and reused as raw material for new ceramics, minimizing waste.
With years of experience in engineering ceramic wear solutions for the steel industry, we don’t just sell liners—we deliver custom-designed systems that solve your specific wear challenges.
Standard liners: Pre-cut plates (100×100mm to 500×500mm) in 5–20mm thicknesses for common equipment.
Custom liners: Precision-cut to match your equipment’s dimensions (curved surfaces, pipes, irregular shapes).
Composite liners: Ceramic-steel hybrids for high-strength, high-wear applications (e.g., pipes, chutes).
Wear assessment: Our team visits your plant to map wear zones, measure abrasion rates, and recommend liner types.
Custom design: 3D modeling ensures liners fit perfectly, with edge protection and transition zone coverage.
Installation support: On-site technicians supervise installation, ensuring proper bonding/fastening and balanced rotation.
Monitoring: Provide guidance on wear tracking, helping you plan maintenance proactively.
Over 200 steel plants in China and Southeast Asia use our ceramic liners, including:
A leading Chinese steelmaker reduced annual maintenance costs by $900,000 after upgrading 8 key pieces of equipment.
A Vietnamese steel plant extended drum mixer liner life from 4 months to 3 years, increasing production by 7%.
A South Korean plant cut safety incidents related to liner replacement by 90% after adopting ceramic liners.
Steel production will always be a harsh environment, but it no longer has to be a “wear tax” on profitability. Ceramic wear-resistant liners—with their hardness, heat resistance, and toughness—are revolutionizing how steel plants protect equipment, reduce downtime, and cut costs.
For steel plant managers, engineers, and maintenance teams, the choice is clear: traditional materials offer temporary fixes, but ceramic liners provide long-term reliability. The question isn’t whether to upgrade—it’s how soon you can start reaping the benefits.
Ready to reduce wear, cut costs, and boost efficiency? Contact us today to schedule a wear assessment and explore custom ceramic liner solutions for your steel plant.
