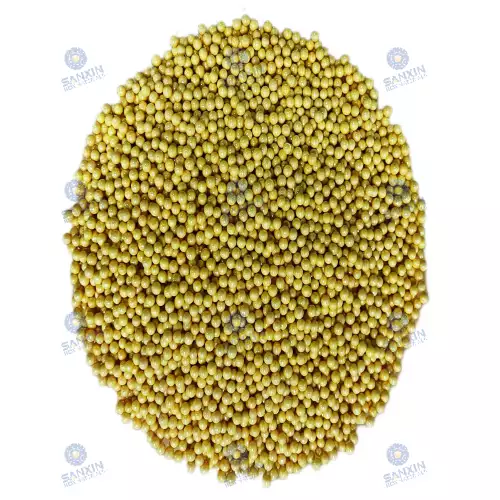

Ceria Zirconia Beads for Offset Ink Dispersion and High-Viscosity Pigment Milling

ceria zirconia beads for offset ink dispersion help battery and ink producers achieve efficient fine grinding while controlling media wear and unwanted contamination. A useful specification connects the ceramic composition and bead diameter to the mill, formulation, separator, target particle size, and quality limits.

Why buyers evaluate this grinding media

ceria-stabilized zirconia beads combine high density, hardness, fracture resistance, and a polished surface. Higher density can improve impact and shear in a bead mill, while a controlled microstructure helps limit abnormal breakage. The commercial comparison should include processing time, energy, media consumption, cleaning, contamination risk, and repeatability instead of purchase price alone.

Application requirements

Offset ink and pigment concentrates can have high viscosity, high solids, and demanding color requirements. CSZ media is evaluated where strong impact energy and toughness are needed, but bead size, loading ratio, separator capability, cooling, and rheology must be balanced to maintain circulation and avoid excessive heat.

Share the mill model, chamber volume, rotor type, separator gap, current media, feed particle size, target fineness, slurry viscosity, solids loading, temperature limit, and expected throughput. These details allow the supplier to recommend a realistic bead diameter and trial quantity.

Specifications to confirm

• Zirconia composition and stabilizer type

• Available bead diameters and size-distribution tolerance

• True density, bulk density, hardness, and roundness

• Wear-rate test method and representative result

• Crushing strength, surface finish, and fragment control

• Cleaning, magnetic separation, inspection, and traceability

• Net package weight, liner, pallet method, MOQ, and lead time

The bead diameter must be compatible with the separator. Media that is too large can reduce contact frequency; media that is too small can increase hydraulic resistance or escape through an unsuitable screen. The practical selection balances energy transfer, circulation, separator safety, and the desired final particle size.

How to conduct a meaningful mill trial

Compare media using the same pigment, resin, solvent or oil system, mill settings, batch size, and target fineness. Measure dispersion time, grind gauge result, viscosity, temperature, color strength, gloss, media wear, and visible fragments. A production decision should use process data rather than density alone.

Inspect the beads after the test for chipping, flattening, fragments, discoloration, or unusual surface damage. Compare product samples using the same analytical method. If contamination is critical, define which elements will be measured, the sampling method, and the acceptance limit before the trial begins.

Quality control for repeat orders

Incoming inspection can include package condition, label and lot number, bead-size sampling, visual roundness, density checks, and a short process trial. Ask whether raw-material purity, forming, sintering, polishing, washing, and final inspection are controlled by documented procedures. Keep an approved reference sample when the media supports a tightly controlled product.

Consistent supply also depends on packaging and logistics. Heavy ceramic media needs strong inner liners, suitable pails or bags, pallet weight control, moisture protection, and clear lot labels. For ongoing consumption, discuss forecast volume, safety stock, production lead time, and the supplier's change-control process.

Supplier questions

1. Which composition and stabilizer are used for this grade?

2. Which bead size fits the mill separator and target particle size?

3. How is wear measured, and can a sample certificate be supplied?

4. How are cleaning, contamination control, and lot traceability managed?

5. What sample quantity, MOQ, packaging, and delivery time are available?

Buying recommendation

For offset ink dispersion, select the smallest practical bead that the separator and slurry flow can safely handle. Lock the approved bead-size range, color-cleanliness requirement, wear test, packaging method, and lot documentation before repeat purchasing.

Send the formulation type, mill model, separator gap, current media, feed and target particle size, viscosity, solids content, contamination limit, trial quantity, annual demand, and delivery destination. The supplier can then recommend a bead size and prepare a technically useful quotation.
