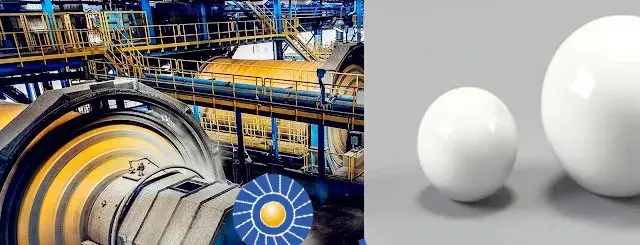

The Indispensable Role of Ceramic Grinding Media in Modern Mineral Processing: Applications, Advantages, and Selection 01

1. Introduction: The Imperative for Purity and Performance

Mineral processing is the bedrock of modern industry, transforming raw ores into the essential materials that fuel construction, manufacturing, electronics, energy storage, and countless other sectors. The grinding stage, where particle size is reduced to liberate valuable minerals or achieve specific product specifications, is particularly critical. Traditionally, steel grinding media (forged or cast balls, rods) dominated this stage due to their high density and initial cost-effectiveness. However, the relentless drive towards higher product purity, stricter environmental regulations, and the processing of increasingly hard or chemically sensitive ores has exposed significant limitations in metallic media.

The primary culprit is contamination. Metal media wear during grinding, introducing iron (Fe) and other alloying elements (Cr, Mn, Ni) into the mineral product. For a vast array of minerals destined for high-value applications, even trace amounts of these metallic impurities are unacceptable. They degrade product color, reduce chemical reactivity, impair electrical properties, interfere with downstream chemical processes (like leaching), increase wear in final products, and can even pose health risks in food or pharmaceutical applications. Furthermore, steel media exhibit inadequate wear resistance when processing exceptionally hard minerals, leading to high media consumption, frequent shutdowns for media replenishment, and escalating operational costs.

This confluence of challenges has propelled ceramic grinding media – primarily based on alumina (Al₂O₃), zirconia (ZrO₂), and zirconium silicate (ZrSiO₄) – from niche solutions to mainstream necessities. Their unique combination of properties offers a compelling answer to the demands of modern mineral processing.

2. Fundamental Advantages of Ceramic Grinding Media

The superiority of ceramic media in specific applications stems from a synergy of inherent material properties:

• Exceptional Hardness and Wear Resistance: Ceramics like alumina (Mohs 9) and zirconia (Mohs 8.5+) rank among the hardest industrial materials. This translates to dramatically lower wear rates compared to steel when grinding hard minerals. Lower media consumption reduces operating costs, minimizes process downtime for media addition, and decreases the burden of worn media disposal.

• Near-Zero Metallic Contamination: This is the most significant driver for adoption. Ceramic media are inherently free of iron and other problematic metals. Their wear debris consists of the ceramic material itself (Al₂O₃, ZrO₂, ZrSiO₄), which is typically chemically compatible with the host mineral or easily removable. This is crucial for achieving the ultra-low Fe levels demanded by specifications, often in the range of 10s or 100s of parts per million (ppm).

• Superior Chemical Inertness: High-quality ceramic media exhibit excellent resistance to attack by acids, alkalis, and salts commonly encountered in mineral slurries. This prevents chemical reactions that could alter the mineral surface chemistry, dissolve valuable components, or generate undesirable soluble impurities. Stability is maintained across a wide pH range.

• High Density (Specific Gravity): While generally lower than steel (SG ~7.8), advanced ceramics like magnesia-stabilized zirconia (SG 5.6-6.0) or high-alumina compositions (SG 3.6-3.9) offer sufficient density for effective grinding energy transfer in most applications. Zirconium silicate (SG ~4.5-4.8) provides a good balance of density and cost-effectiveness.

• Controlled Fracture Characteristics: Modern ceramic media are engineered to fracture in a controlled manner, minimizing the generation of problematic fine shards that could contaminate the product or impede grinding efficiency. High-toughness formulations (especially Y-TZP zirconia) significantly resist chipping and breakage.

• Smooth Surface Finish: Ceramic beads can be manufactured with very smooth surfaces, reducing abrasive wear on mill liners and potentially lowering energy consumption.

• Corrosion Resistance: Unlike steel, ceramics are immune to electrochemical corrosion in wet grinding environments, eliminating one source of contamination and media degradation.

3. Mineral Types Necessitating Ceramic Grinding Media

The application of ceramic grinding media is dictated by the mineral's properties, the required product specifications, and the intended end-use. The following categories represent minerals where ceramic media are frequently essential or provide overwhelming economic and technical advantages:

3.1. Non-Metallic Minerals (Extreme Sensitivity to Iron Contamination & High Purity Demands)

This category represents the largest and most established market for ceramic grinding media. Product value is heavily dependent on brightness, whiteness, chemical purity, and specific functional properties – all easily compromised by iron staining or metallic inclusions.

• Quartz / Silica Sand (SiO₂): The quintessential application. High-purity quartz is vital for glass (container, flat, optical, specialty), ceramics, electronics (semiconductor crucibles, fused quartz, silicon metal), solar PV silicon, high-performance concrete, and foundry cores. Iron contamination causes discoloration (yellow/green tints), reduces light transmission in glass, and creates defects in semiconductors. Ceramic media (especially high-alumina) are mandatory for grinding silica sand to meet specifications often requiring Fe₂O₃ < 0.01% (100 ppm) or even < 0.005% (50 ppm). Grinding to ultrafine sizes (d₉₀ < 10 µm) for applications like silicon micro powder further necessitates low-contamination media.

• Feldspar (KAlSi₃O₈, NaAlSi₃O₈, CaAl₂Si₂O₈): A critical raw material for ceramics (body and glaze), glass, and fillers. Iron impurities cause specking and discoloration in ceramic bodies and glazes and reduce transparency in glass. Ceramic media ensure the low Fe/Ti levels required, particularly for high-grade sanitaryware, tiles, and tableware.

• Kaolin / Clay (Al₂Si₂O₅(OH)₄): Valued for its whiteness, brightness, plasticity, and chemical inertness in paper coating/filling, ceramics, paints, plastics, rubber, and cosmetics. Iron stains drastically reduce brightness and whiteness, downgrading the product and its market value. Ceramic media are essential for processing premium kaolin, especially for paper coating where brightness is paramount.

• Calcium Carbonate (CaCO₃ - Ground/GCC and Precipitated/PCC): The world's most abundant industrial mineral. While steel media are often used for coarse grinding, ceramic media become critical for producing ultrafine (d₉₇ < 2µm) and high-brightness GCC and PCC used in:

• Paper: High-gloss coating grades demand extreme brightness (>92 ISO) and low abrasion.

• Plastics & Polymers: High-end masterbatches and compounds require low Fe to prevent polymer degradation and discoloration.

• Paints & Coatings: High brightness and gloss retention.

• Food & Pharmaceuticals: Strict regulatory limits on heavy metals (including Fe) necessitate ceramic grinding for food-grade (E170) and USP/Ph.Eur. compliant grades.

• Sealants & Adhesives: Low abrasion and consistent rheology.

• Talc (Mg₃Si₄O₁₀(OH)₂): Used in paints, plastics, ceramics, paper, cosmetics (baby powder, makeup), pharmaceuticals, and food. Whiteness, brightness, and chemical purity (low Fe, As, heavy metals) are critical selling points. Iron contamination causes graying/yellowing. Ceramic media are essential for high-value cosmetic, pharmaceutical, and food-grade talc production.

• Mica (Muscovite KAl₂(AlSi₃O₁₀)(OH)₂, Phlogopite KMg₃(AlSi₃O₁₀)(OH)₂): Valued for its platy structure, dielectric strength, and luster in paints (barrier effect), plastics, cosmetics (nacreous effect), pearlescent pigments, and electrical insulation. Iron impurities reduce brightness and interfere with pearlescence. Ceramic media help preserve particle structure and minimize contamination during wet grinding to delaminate flakes.

• Baryte / Barite (BaSO₄): Primarily used as a weighting agent in oil and gas drilling muds. The American Petroleum Institute (API) specification mandates low abrasion (measured by a wear test on steel). Steel media grinding increases abrasiveness. Ceramic media (especially alumina) produce barite with lower abrasiveness and higher density, meeting API specs more efficiently. Also used in paints, plastics, and fillers where brightness matters.

• Wollastonite (CaSiO₃): Used as an acicular (needle-like) filler in ceramics, paints, plastics, friction products (brakes), and metallurgy. Preserving the acicular structure during grinding is important for reinforcement. Low Fe content is required for ceramics and paints. Ceramic media help achieve both objectives with minimal contamination.

• Bentonite (Montmorillonite Clay): Used in foundry sand bonding, iron ore pelletizing, drilling muds, cat litter, and as an absorbent. While not always requiring ultra-low Fe, ceramic media can be preferred for specific high-grade applications (e.g., certain absorbents, cosmetics) or when processing sodium-activated bentonite where chemical stability is beneficial.

• Magnesite / Magnesium Hydroxide (MgCO₃ / Mg(OH)₂): Used in refractory bricks (magnesite), flame retardants (Mg(OH)₂), and environmental applications. High purity (low CaO, SiO₂, Fe₂O₃, B₂O₃) is essential for refractory performance. Ceramic media prevent Fe contamination during fine grinding of dead-burned magnesia (DBM) or Mg(OH)₂.

3.2. Industrial Minerals & Abrasives (High Hardness & Specific Requirements)

Processing these inherently hard minerals demands media with exceptional wear resistance. Contamination control is also often important.

• Zircon / Zircon Sand (ZrSiO₄): The primary source of zirconium and hafnium. Used in ceramics (opacifier in glazes/sanitaryware), refractories, foundry sands, zirconium chemicals, and nuclear applications. Its high hardness (Mohs 7.5) rapidly wears steel media. Ceramic media (especially alumina or zirconia-toughened alumina) offer vastly superior wear life. Low Fe is also required for high-grade ceramics and chemical production.

• Garnet (Almandite Fe₃Al₂(SiO₄)₃, etc.): Primarily used as an abrasive for waterjet cutting, sandblasting, and coated abrasives (sandpaper). Its hardness (Mohs 7.5-8.5) necessitates highly wear-resistant media like alumina to maintain economic viability in grinding circuits. Minimizing contamination helps maintain consistent abrasive performance.

• Alumina / Corundum (Al₂O₃ - Bauxite-derived or synthetic): The base material for many ceramic media itself! Synthetic fused alumina (brown, white, pink) is a key abrasive grain. Its extreme hardness (Mohs 9) makes ceramic grinding media (often high-purity alumina or zirconia) the only viable option for size reduction and shaping, as steel media would wear catastrophically.

• Silicon Carbide (SiC): An ultra-hard (Mohs 9.5) abrasive and refractory material, also used in advanced ceramics and semiconductors. Similar to alumina, ceramic media (alumina, silicon nitride) are essential due to the extreme wear on any softer media. Purity is critical for electronic grades.

• Rutile / Ilmenite (TiO₂ / FeTiO₃): Titanium dioxide minerals. While the primary product (TiO₂ pigment) is often produced via chemical routes (Sulphate, Chloride) requiring dissolution, grinding of feedstocks or synthetic rutile for specific applications may benefit from ceramic media to avoid Fe contamination affecting pigment brightness or downstream chemistry.

3.3. Metal Ores and Concentrates (Strategic Value & Downstream Purity)

While coarse primary grinding often uses steel, ceramic media become critical in fine/ultrafine grinding stages for concentrates where purity impacts downstream extraction or final metal quality, or for specific sensitive minerals.

• Lithium Minerals (Spodumene LiAlSi₂O₆, Lepidolite K(Li,Al)₃(Al,Si,Rb)₄O₁₀(F,OH)₂, Petalite LiAlSi₄O₁₀): Essential for lithium-ion batteries. After initial crushing and flotation, the concentrate undergoes fine/ultrafine grinding prior to high-temperature decrepitation (spodumene) or direct acid leaching. Iron contamination from grinding can:

• Consume expensive acid during leaching.

• Co-precipitate with lithium, reducing recovery.

• Contaminate final lithium carbonate/hydroxide, making it unsuitable for battery cathode production (strict impurity limits: Fe < 10-50 ppm). Ceramic media (alumina, zirconia) are crucial for battery-grade lithium production.

• Tantalum-Niobium (Coltan (Fe,Mn)(Nb,Ta)₂O₆): Critical minerals for electronics (capacitors), aerospace alloys, and superalloys. Similar to lithium, concentrates require fine grinding before hydrometallurgical processing (acid leaching, solvent extraction). Iron contamination complicates the complex separation chemistry of Ta and Nb. Ceramic media minimize Fe introduction and reagent consumption.

• Tungsten (Wolframite (Fe,Mn)WO₄, Scheelite CaWO₄): Vital for hard metals, alloys, and defense. Concentrates are often digested using strong alkalis (scheelite) or acids (wolframite). Iron contamination can interfere with precipitation processes and contaminate final APT (Ammonium Paratungstate). Ceramic media are used in fine grinding circuits to control Fe levels.

• Tin (Cassiterite SnO₂): Concentrates are often smelted. While less sensitive than Ta/Nb/Li, some high-purity tin applications (solders, chemicals) or specific smelting routes benefit from reduced Fe input from grinding, making ceramic media a consideration for regrind mills.

• Rare Earth Elements (Monazite (Ce,La,Th)PO₄, Bastnäsite (Ce,La)CO₃F): Essential for permanent magnets (EVs, wind turbines), catalysts, and phosphors. Beneficiation produces complex concentrates requiring aggressive hydrometallurgy (cracking, leaching, SX). Iron contamination consumes acids, complicates separation, and contaminates high-purity REE oxides. Ceramic media are increasingly adopted in ultrafine grinding prior to leaching.

• Gold and Silver Ores/Concentrates: While coarse grinding uses steel, ceramic media find application in:

• Ultrafine Grinding (P80 <10-20µm): Used to liberate finely disseminated gold or improve leaching kinetics. Steel media wear excessively and introduce iron that consumes cyanide (forming ferrocyanide complexes) or oxygen, increasing reagent costs. Ceramic media eliminate this issue. Also used in some Albion Process™ applications.

• Regrinding of Flotation Concentrates: Prior to leaching or smelting, minimizing Fe input can be beneficial for some processes.

• Copper, Lead, Zinc Concentrates: Primarily ground with steel. However, ceramic media might be considered for specific high-purity applications (e.g., copper for high-conductivity wire) where minimizing Fe in the final metal is critical, or in regrind circuits where contamination from primary grinding steel is already high.

3.4. Advanced Materials and Battery Chemistries (Ultra-High Purity Mandate)

This rapidly growing segment has the most stringent purity requirements, often mandating ceramic media throughout the entire size reduction process.

• Lithium-Ion Battery Cathode Active Materials (CAM):

• They can catalyze electrolyte decomposition.

• Cause internal short circuits by plating on the anode.

• Reduce cycle life and capacity.

• Increase risk of thermal runaway. Specifications are typically < 10-20 ppm for individual metallic impurities. Only high-purity alumina or zirconia ceramic media can achieve this. Steel media are absolutely prohibited.

• Precursors (NMC/NCA Hydroxides/Carbonates - NiₓMnуCo₂(OH)₂/CO₃, LFP FePO₄): Precursors are precipitated and then mixed with lithium and calcined to form CAM. Grinding of precursors or intermediates is necessary to control particle size distribution (PSD) for optimal battery performance. Metallic impurities (Fe, Cr, Zn, Cu) are catastrophic:

• Final CAM (LiNiₓMnуCo₂O₂, LiNiₓCoуAl₂O₂, LiFePO₄, LiMn₂O₄, LiCoO₂): Final CAM materials may also require light grinding or deagglomeration before electrode slurry preparation. Maintaining ultra-low metallic impurity levels remains paramount, requiring ceramic media.

• Lithium-Ion Battery Anode Materials:

• Synthetic Graphite / Natural Graphite: Grinding/milling is used to shape particles and achieve the desired PSD. Metallic impurities (Fe, Cu, Cr, Ni) are equally detrimental as in cathodes, causing plating, SEI instability, and capacity fade. High-purity ceramic media (alumina, zirconia) are essential, especially for premium synthetic grades.

• Silicon-Based Anodes: Emerging materials requiring size reduction. Extreme purity is critical for performance and longevity. Ceramic media are the standard.

• Other Advanced Materials:

• Phosphors & Luminescent Materials: Used in LEDs, displays, lighting. Trace metals (Fe, Ni, Co) act as quenching agents, drastically reducing luminous efficiency. Ceramic grinding is mandatory.

• Ceramic Pigments & Stains (ZrSiO₄-based, SnO₂-based, etc.): Color development and stability are highly sensitive to impurities. Iron causes discoloration (yellows/browns). Ceramic media ensure color fidelity.

• Electronic Ceramics (BaTiO₃, PZT, ZnO Varistors): Dielectric, piezoelectric, and varistor properties are extremely sensitive to dopant levels and impurities. Iron can drastically alter electrical characteristics. Ceramic media are used in powder preparation.

• Catalysts (Heterogeneous & Homogeneous): Activity and selectivity can be severely impacted by trace metal poisons introduced during support grinding or catalyst processing.

• Bioceramics (Hydroxyapatite, Alumina, Zirconia): Grinding for medical implants requires biocompatible debris. Ceramic media avoid introducing toxic metallic contaminants.

Table 1: Summary of Mineral Applications for Ceramic Grinding Media

Mineral Category

To Be Contiue:
