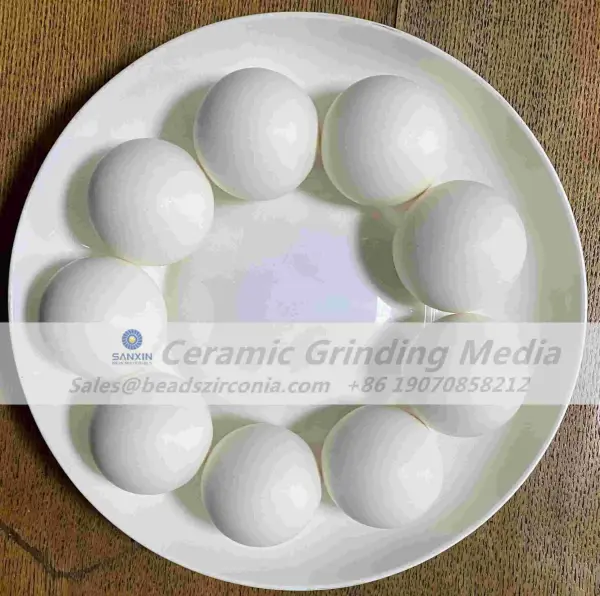

The Indispensable Role of Ceramic Grinding Media in Modern Mineral Processing: Applications, Advantages, and Selection 02

https://www.beadszirconia.com/the-indispensable-role-of-ceramic-grinding-media-in-modern-mineral-processing-applications-advantages-and-selection-01.html

Contiue:

4. Selection Criteria for Ceramic Grinding Media

Choosing the optimal ceramic media involves balancing multiple factors:

• Mineral Hardness (Mohs Scale): Dictates the required media hardness/wear resistance. Alumina (Mohs 9) for most very hard minerals (Quartz, Zircon, Alumina itself). Zirconia (Mohs 8.5+) offers superior toughness for impact resistance. Zirconium Silicate (Mohs 7.5) is cost-effective for moderately hard minerals like Feldspar or Carbonate.

• Required Product Fineness (P80): Finer grinding generally requires smaller media sizes. Media size distribution must be optimized for the target grind.

• Contamination Tolerance: The stricter the Fe/ metal impurity limit, the higher the purity grade of ceramic required (e.g., 92% vs. 99.5% Al₂O₃; Y-TZP Zirconia). Zirconia generally offers the lowest intrinsic contamination risk.

• Chemical Environment (Slurry pH, Soluble Ions): Media must resist chemical attack. High-alumina is excellent across wide pH. Zirconia is superb in alkali; care needed in strong acids. Zirconium silicate is generally stable but can dissolve slightly in strong acids/bases.

• Mill Type and Operating Parameters:

• Stirred Mills (Vertimill, IsaMill, SMD, etc.): Dominant for fine/ultrafine grinding. Require small (1-6mm), highly spherical beads. High-density media (Zirconia, dense Alumina) are preferred for energy efficiency. Toughness is critical to resist breakage.

• Ball Mills: Used for coarser grinding. Larger media sizes (10-50mm). Alumina balls are most common. High-alumina (>90%) offers best wear life. Impact resistance is important.

• Vibration Mills: Similar requirements to stirred mills for media size/sphericity.

• Media Density (Specific Gravity - SG): Affects grinding energy and efficiency. Higher SG media (Zirconia SG 6.0) deliver more impact force per bead, often leading to faster grinding kinetics than lower SG media (Alumina SG 3.7) at the same size. SG choice depends on mill type and target grind size.

• Media Size: Must be matched to the feed size and target product size. Smaller media generate finer grinds but have lower kinetic energy. Optimization is key.

• Toughness and Breakage Resistance: Critical to avoid generating fine ceramic debris that contaminates the product and reduces grinding efficiency. Yttria-Stabilized Tetragonal Zirconia Polycrystals (Y-TZP) offer the highest toughness. High-purity, fine-grained aluminas also provide good toughness.

• Cost Considerations: Media cost ($/kg), Wear Rate (kg media consumed per ton of ore), and Impact on Downstream Efficiency/Product Value must be evaluated holistically. While ceramic media have a higher upfront cost per kg than steel, their vastly lower wear rate and the value of uncontaminated product usually result in a lower total cost per ton of product ground and significant downstream savings (e.g., reduced acid consumption, higher recovery, premium product pricing). Zirconium silicate often offers the best balance of performance and cost for less demanding applications.

Table 2: Ceramic Media Types - Properties and Typical Applications

Media Type

5. Economic and Operational Considerations

The decision to invest in ceramic media involves a Total Cost of Ownership (TCO) analysis:

• Media Cost: Higher initial cost/kg vs. steel.

• Wear Rate: Dramatically lower (often 1/5th to 1/50th of steel wear rates), reducing media consumption cost per ton of ore.

• Mill Availability: Reduced frequency of media addition shutdowns increases mill uptime and throughput.

• Energy Consumption: Potential for lower energy use per ton in some cases (smoother beads, less viscous slurry from Fe hydroxides?), though media density also plays a role. Requires case-by-case evaluation.

• Downstream Savings:

• Reduced reagent consumption (acid, cyanide, oxygen).

• Higher mineral recovery in leaching/flotation.

• Reduced impurity removal costs (filtration, precipitation).

• Ability to sell product at a premium due to higher purity/quality.

• Extended liner life (smoother ceramic vs. steel).

• Environmental Benefits: Reduced media consumption means less waste for disposal. Elimination of heavy metal contamination (Fe, Cr, Ni) in tailings.

For high-purity minerals or applications where contamination drastically impacts value, the TCO overwhelmingly favors ceramics despite the higher upfront media cost. For less sensitive applications or coarser grinds, the economics need careful calculation, but wear life alone often justifies ceramics for hard ores.

6. Future Trends

The demand for ceramic grinding media is expected to grow steadily, driven by:

• Explosive Growth in Battery Minerals: The Li-ion battery supply chain expansion necessitates massive amounts of ceramic media for processing spodumene, lepidolite, and especially cathode/anode precursors and materials.

• Increasing Purity Requirements: Across all sectors (electronics, pharma, food, advanced materials), purity standards continue to tighten, pushing more minerals into the ceramic media requirement zone.

• Processing Harder & More Complex Ores: As easier ores deplete, harder and more refractory ores require more robust and contamination-free grinding solutions.

• Advancements in Media Formulations: Research focuses on:

• Higher toughness ceramics to minimize breakage.

• Novel composite media (e.g., alumina-zirconia).

• Media with tailored surface properties.

• Even higher density materials.

• Optimization of Mill Designs: Continued evolution of stirred mills for energy-efficient ultrafine grinding perfectly complements high-performance ceramic beads.

• Sustainability Focus: The long wear life and reduced waste footprint of ceramics align with industry sustainability goals.

7. Conclusion

Ceramic grinding media have evolved from specialized tools to fundamental components in the modern mineral processing landscape. Their unique ability to deliver contamination-free grinding, coupled with exceptional wear resistance and chemical stability, makes them indispensable for a vast array of critical minerals. From the ubiquitous quartz sand and calcium carbonate forming the basis of construction and paper, to the high-purity talc in cosmetics and pharmaceuticals, the ultra-hard zirconia and alumina abrasives, the strategic lithium and rare earths powering the green energy transition, and the advanced battery materials driving electrification – ceramic media enable the production of high-value products that meet the stringent demands of advanced industries.

The selection of the optimal ceramic media type (alumina, zirconia, zirconium silicate) requires careful consideration of mineral properties, product specifications, mill type, and economic factors. However, the long-term benefits – reduced contamination, lower operating costs through extended media life, higher product value, and improved downstream efficiency – consistently demonstrate that for an ever-growing list of minerals, ceramic grinding media are not just an option, but an essential investment in quality, performance, and sustainability. As technology advances and purity demands escalate, the role of ceramic media will only become more central to the future of mineral processing.
