What Is Digital Inkjet Ink — and Why Zirconia Beads Matter in Its Production?

Executive Summary

Digital inkjet ink, though often overlooked by end-users, is a marvel of modern chemistry and materials engineering. Its quality and performance underpin the vibrant images on textiles, packaging, billboards, and even electronics. At the heart of high-performance inkjet ink production lies a critical process: the ultra-fine grinding and dispersion of pigments. This process is only possible with advanced grinding media—most notably, yttria-stabilized zirconia beads. This white paper explores the science of digital inkjet inks, the challenges of pigment dispersion, and the pivotal role of zirconia beads in enabling the next generation of digital printing.

Table of Contents

1. Introduction: The Digital Printing Revolution

2. Anatomy of Digital Inkjet Ink
   2.1 Colorants: Dyes vs. Pigments
   2.2 Binders and Their Functions
   2.3 Solvents: The Carrier System

3. Classification of Digital Inks
   3.1 By Solvent Base
   3.2 By Colorant Type
   3.3 By Environmental Impact
   3.4 By Application Field

4. The Science of Pigment Dispersion
   4.1 Why Particle Size Matters
   4.2 Stability, Flow, and Printhead Safety
   4.3 Challenges in Nano-Grinding

5. Zirconia Beads: The Engine of Ultra-Fine Grinding
   5.1 Material Properties of Yttria-Stabilized Zirconia
   5.2 Bead Size, Shape, and Surface Quality
   5.3 How Zirconia Beads Enable Nano Pigment Production

6. The Ink Manufacturing Process
   6.1 Wet Milling and Bead Mills
   6.2 Process Parameters and Optimization
   6.3 Quality Control and Testing

7. Case Studies: Zirconia Beads in Action
   7.1 Textile Inkjet Inks
   7.2 UV and Ceramic Inks
   7.3 Industrial Packaging Inks

8. Trends and Innovations in Digital Inkjet Ink
   8.1 Eco-Friendly and Bio-Based Inks
   8.2 Functional and Smart Inks
   8.3 Advances in Bead Mill Technology

9. SANXIN: Your Partner in High-Performance Ink Production
   9.1 Product Portfolio
   9.2 Technical Support and Customization
   9.3 Customer Success Stories

10. Environmental, Economic, and Regulatory Considerations

11. Frequently Asked Questions

12. References

13. Contact Information

1. Introduction: The Digital Printing Revolution

Digital printing has transformed the way we create, customize, and consume visual information. From the vivid banners on city streets to the intricate patterns on designer fabrics, digital inkjet technology enables high-resolution, on-demand, and variable-data printing on an unprecedented scale.

At the core of this revolution is the ink itself—a complex, high-tech fluid that must meet stringent requirements for color, stability, and printhead compatibility. The shift from analog to digital printing has driven rapid innovation in ink chemistry and manufacturing, with pigment-based inkjet inks emerging as the gold standard for durability and performance.

Yet, achieving the ultra-fine, stable dispersions required for modern inkjet printing is no trivial task. It demands advanced grinding and dispersion technology—powered by the unique properties of zirconia beads.

2. Anatomy of Digital Inkjet Ink

Digital inkjet ink is a carefully engineered colloidal system. Its performance depends on the precise interplay of its components:

2.1 Colorants: Dyes vs. Pigments

Dyes are fully dissolved color molecules. They offer:

• Brilliant, vivid colors

• Smooth flow through printheads

• Limitations: Poor UV and water resistance, prone to fading

Pigments are solid, insoluble particles. They offer:

• Superior UV and water resistance

• Long-term color stability

• Limitations: Require ultra-fine grinding and stable dispersion to avoid clogging and settling

Modern inkjet inks increasingly favor pigments for outdoor, industrial, and high-value applications due to their durability.

2.2 Binders and Their Functions

Binders are typically resins, polymers, or crosslinking agents. Their roles include:

• Anchoring the colorant to the substrate

• Enhancing adhesion, flexibility, and durability

• Influencing gloss, texture, and resistance to abrasion or chemicals

Common binders: Acrylics, polyurethanes, epoxies, and specialized crosslinkers for UV-curable inks.

2.3 Solvents: The Carrier System

Solvents dissolve or disperse the colorant and binder, controlling:

• Ink viscosity and flow

• Drying or curing rate

• Compatibility with printheads and substrates

Types:

• Water (water-based inks)

• Organic solvents (solvent-based inks)

• Monomers/oligomers (UV-curable inks)

3. Classification of Digital Inks

Digital inks can be classified in several ways, reflecting their chemistry, performance, and application environment.

3.1 By Solvent Base

• Water-Based Inks:

• Solution (dye), microemulsion, or dispersion (pigment) types

• Eco-friendly, low odor, used for indoor graphics, textiles, and office printing

• Solvent-Based Inks:

• Oil-based or mild-solvent formulations

• Strong adhesion to non-porous surfaces, high durability, used for outdoor signage, vehicle wraps

• Phase-Change Inks:

• Solid at room temperature, melt during printing

• Used in specialty applications for sharp image quality

• Reactive/UV-Curable Inks:

• Contain monomers/oligomers cured by UV light

• No volatile solvents, instant curing, excellent adhesion to glass, metal, ceramics

3.2 By Colorant Type

• Dye-Based Inks:

• Fully dissolved, yielding bright color and smooth printing

• Poor UV/water resistance, used for photographic and office printing

• Pigment-Based Inks:

• Solid pigments suspended in fluid

• Superior UV and water resistance, ideal for outdoor and industrial use

3.3 By Environmental Classification

• Water-Based Inks:

• Low VOCs, minimal odor, widely used in eco-conscious markets

• UV-Curable Inks:

• No solvent emissions, energy-efficient curing

• Bio-Inks:

• Derived from renewable sources, biodegradable, emerging in textiles and packaging

3.4 By Application Field

• Textile Printing:

• Requires flexibility, color fastness, and wash resistance

• Packaging and Labels:

• Demands high adhesion, abrasion resistance, and food safety compliance

• Ceramic and Glass Printing:

• Needs high-temperature stability, chemical resistance

• Electronics and Functional Printing:

• Conductive, dielectric, or magnetic inks for printed electronics

4. The Science of Pigment Dispersion

Producing a stable, high-performance pigment-based ink is a materials science challenge.

4.1 Why Particle Size Matters

• Printhead Compatibility:

• Modern inkjet printheads have nozzle diameters as small as 10–30 microns

• Pigment particles must be <200 nm (often <100 nm) to avoid clogging and ensure smooth flow

• Color Strength and Transparency:

• Finer particles yield higher color strength and better transparency for overlays

• Stability:

• Smaller, well-dispersed particles resist settling and aggregation, ensuring long shelf life

4.2 Stability, Flow, and Printhead Safety

• Dispersion Stability:

• Achieved through surfactants, dispersants, and precise particle size control

• Prevents flocculation (clumping) and sedimentation

• Rheology:

• Viscosity and flow properties must be tuned for jetting performance

• Thixotropy (shear-thinning behavior) helps ink flow under pressure but remain stable at rest

• Printhead Safety:

• Clogging or abrasion can damage expensive printheads, leading to downtime and costly repairs

• Only inks with ultra-fine, stable dispersions are safe for long-term use

4.3 Challenges in Nano-Grinding

• Hardness of Pigments:

• Many pigments (e.g., carbon black, TiO₂, phthalocyanines) are extremely hard and difficult to grind

• Agglomeration:

• Pigment particles tend to stick together, forming larger clusters that are hard to break apart

• Contamination:

• Metal or glass beads can introduce impurities, affecting color and stability

• Heat Generation:

• High-energy grinding can raise temperatures, risking pigment degradation or solvent evaporation

5. Zirconia Beads: The Engine of Ultra-Fine Grinding

The solution to these challenges lies in the use of high-performance grinding media—specifically, yttria-stabilized zirconia beads.

5.1 Material Properties of Yttria-Stabilized Zirconia

• Density:

• ~6.0 g/cm³, much higher than glass or polymer beads, enabling more effective energy transfer

• Hardness:

• Mohs 9, second only to diamond, ensuring efficient grinding of even the hardest pigments

• Chemical Inertness:

• Does not react with pigments, binders, or solvents, preserving ink purity

• Wear Resistance:

• Minimal bead degradation, reducing contamination and extending bead life

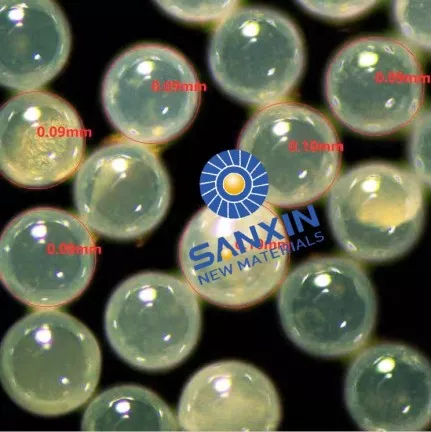

5.2 Bead Size, Shape, and Surface Quality

• Size:

• For inkjet inks, 0.1 mm beads are common; smaller beads provide more contact points for finer grinding

• Sphericity:

• Perfectly round beads roll smoothly, minimizing friction and wear

• Surface Finish:

• Ultra-smooth surfaces reduce contamination and ensure consistent particle size reduction

5.3 How Zirconia Beads Enable Nano Pigment Production

• Efficient Energy Transfer:

• High density and hardness mean more force is imparted to pigment particles

• Minimal Contamination:

• Inert, wear-resistant beads prevent color shifts and maintain ink purity

• Stable Performance:

• Beads retain their size and shape over long production runs, ensuring consistent results

• Compatibility with High-Speed Mills:

• Zirconia beads withstand the intense forces in modern horizontal or vertical bead mills

6. The Ink Manufacturing Process

6.1 Wet Milling and Bead Mills

• Premixing:

• Pigments, binders, solvents, and additives are blended to form a coarse slurry

• Wet Milling:

• The slurry is pumped into a bead mill filled with zirconia beads

• High-speed agitation causes beads to collide, breaking pigment agglomerates into nano-sized particles

• Separation:

• After milling, the ink is separated from the beads using screens or centrifugal separators

• Filtration and Finishing:

• The ink is filtered to remove any oversized particles, then adjusted for viscosity, pH, and other properties

6.2 Process Parameters and Optimization

• Bead Size and Loading:

• Smaller beads yield finer particles but may require more advanced separation systems

• Rotor Speed:

• Higher speeds increase grinding energy but also heat; must be balanced for optimal results

• Temperature Control:

• Cooling systems prevent overheating and solvent loss

• Residence Time:

• Longer milling times yield finer dispersions but can risk pigment degradation

6.3 Quality Control and Testing

• Particle Size Analysis:

• Laser diffraction or dynamic light scattering ensures particles are below the target size (often <100 nm)

• Stability Testing:

• Accelerated aging, centrifugation, and storage tests confirm dispersion stability

• Print Testing:

• Inks are tested on actual printheads and substrates to verify color, adhesion, and performance

7. Case Studies: Zirconia Beads in Action

7.1 Textile Inkjet Inks

• Challenge:

• Achieving deep, vibrant colors that withstand washing and sunlight

• Solution:

• SANXIN 0.1 mm zirconia beads enabled the grinding of organic pigments to <80 nm, producing inks with exceptional color strength and fastness

• Result:

• Textile printers reported fewer printhead clogs, longer maintenance intervals, and higher customer satisfaction

7.2 UV and Ceramic Inks

• Challenge:

• Dispersing inorganic pigments and ceramic powders, which are extremely hard and abrasive

• Solution:

• Yttria-stabilized zirconia beads provided the necessary hardness and chemical stability for efficient grinding

• Result:

• UV and ceramic inks with ultra-fine, stable dispersions, enabling high-resolution printing on glass, metal, and tiles

7.3 Industrial Packaging Inks

• Challenge:

• Demanding print speeds and substrate variety require inks with precise rheology and stability

• Solution:

• SANXIN beads enabled rapid, repeatable pigment dispersion, reducing mill time and ensuring consistent ink performance across production batches

8. Trends and Innovations in Digital Inkjet Ink

8.1 Eco-Friendly and Bio-Based Inks

• Water-Based and UV-Curable Inks:

• Growing demand for low-VOC, environmentally friendly inks in textiles, packaging, and signage

• Bio-Inks:

• Development of inks from renewable sources, biodegradable polymers, and natural pigments

• Zirconia Beads’ Role:

• Inert, non-toxic, and recyclable, supporting green manufacturing initiatives

8.2 Functional and Smart Inks

• Conductive and Dielectric Inks:

• Used in printed electronics, RFID, and sensors

• Thermochromic and Photochromic Inks:

• Change color with temperature or light, used in security and novelty applications

• Antimicrobial and Self-Cleaning Inks:

• Incorporate functional nanoparticles, requiring precise, contamination-free dispersion

8.3 Advances in Bead Mill Technology

• Smaller Bead Sizes:

• Mills now support beads as small as 0.03 mm, enabling even finer dispersions

• Automated Process Control:

• Real-time monitoring of particle size, temperature, and viscosity for consistent quality

• Energy Efficiency:

• New mill designs reduce energy consumption and heat generation

9. SANXIN: Your Partner in High-Performance Ink Production

9.1 Product Portfolio

• Yttria-Stabilized Zirconia Beads:

• Sizes from 0.03 mm to 2.0 mm

• Ultra-narrow size distribution, high sphericity, and smooth surface

• Custom Formulations:

• Beads tailored for specific pigment, resin, or solvent systems

• Magnetic and Hybrid Beads:

• For advanced separation and functional ink applications

9.2 Technical Support and Customization

• Process Consulting:

• Assistance with mill selection, process optimization, and troubleshooting

• Lab Testing:

• Particle size analysis, dispersion stability, and print testing

• Global Logistics:

• Rapid delivery and support in over 50 countries

9.3 Customer Success Stories

• Textile Printer:

• Reduced mill time by 30%, improved ink stability, and eliminated printhead clogs

• Packaging Ink Producer:

• Achieved consistent batch-to-batch quality, enabling high-speed production

• Ceramic Ink Manufacturer:

• Developed new metallic and effect inks for tile and glass printing

10. Environmental, Economic, and Regulatory Considerations

10.1 Environmental Impact

• Low-VOC, Recyclable Inks:

• Supported by inert, long-lasting zirconia beads

• Reduced Waste:

• Efficient grinding reduces pigment loss and bead wear

• Water Conservation:

• Closed-loop milling systems minimize water use

10.2 Economic Advantages

• Lower Total Cost of Ownership:

• Durable beads and efficient mills reduce operational costs

• Higher Yield:

• Finer, more uniform dispersions improve color strength and ink performance

• Faster Time to Market:

• Scalable, reliable processes accelerate product development

10.3 Regulatory Compliance

• Purity Standards:

• SANXIN beads meet stringent standards for food, packaging, and electronics inks

• Safety:

• Mills and media are designed to comply with global safety regulations

• Documentation:

• Full traceability and certification for quality assurance

11. Frequently Asked Questions

Q1: Why are pigment particle sizes below 100 nm important for inkjet inks?
A: Sub-100 nm particles ensure smooth flow through printheads, prevent clogging, and yield stable, high-quality prints.

Q2: How do zirconia beads compare to glass or polymer beads?
A: Zirconia beads are denser, harder, and more chemically inert, enabling finer grinding and less contamination.

Q3: What is the lifespan of zirconia beads in ink production?
A: With proper use, zirconia beads can last for thousands of hours, far exceeding glass or polymer alternatives.

Q4: Are SANXIN beads suitable for food or pharmaceutical inks?
A: Yes, SANXIN offers high-purity grades with full certification for sensitive applications.

Q5: Can SANXIN assist with process optimization and troubleshooting?
A: Absolutely. Our technical team provides lab testing, process consulting, and on-site support.

12. References

1. Advances in Inkjet Ink Technology, Journal of Printing Science, 2024.

2. The Role of Grinding Media in Pigment Dispersion, Advanced Materials Review, 2023.

3. SANXIN Internal Application Reports, 2025.

4. Environmental Standards for Digital Inks, ISO/TC 130, 2022.

5. Functional Inks and Digital Printing, Coatings World, 2024.

13. Contact Information

Ready to improve your ink dispersion, reduce mill time, and ensure ink consistency?
Contact SANXIN for technical support, custom media solutions, or to request a quote.

• Email: sales@beadszirconia.com

• Website: www.beadszirconia.com

• Phone/WhatsApp: +86-19070858212

SANXIN: Empowering the Future of Digital Printing with Precision Grinding Solutions.
