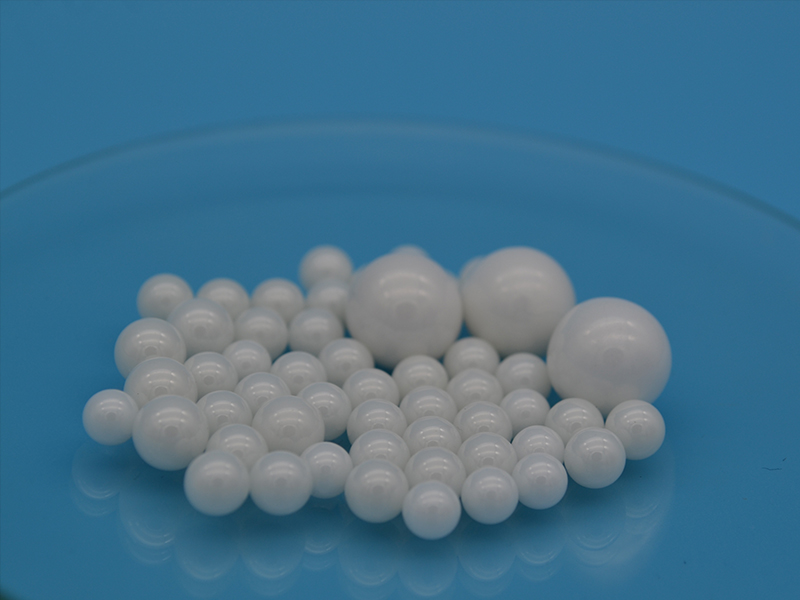

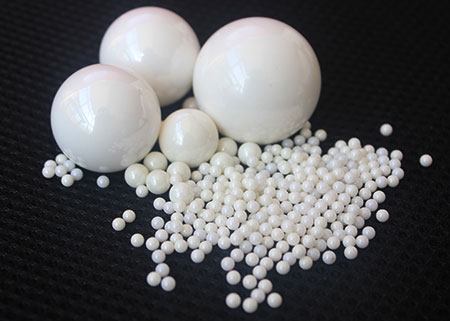

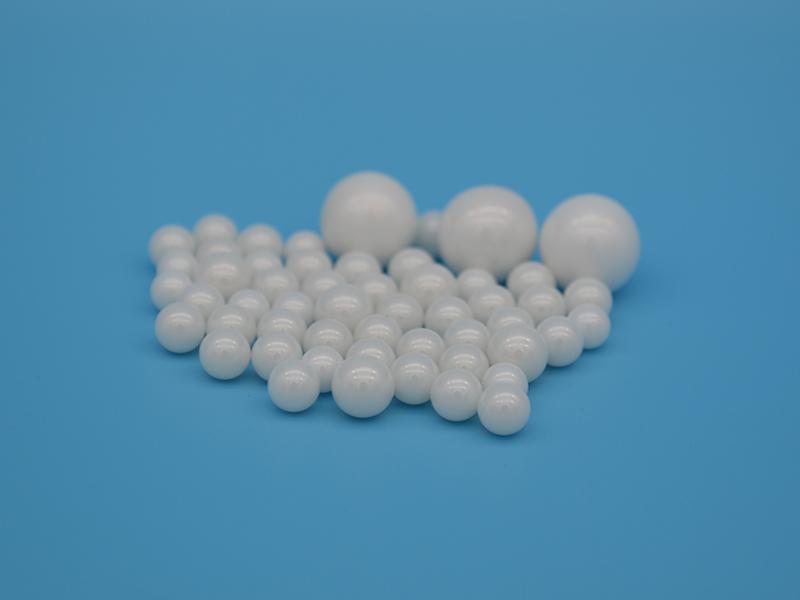

Application: zirconia balls (ZBB) are mainly used as valve balls,fully ceramic bearings, force measurement balls,trackballs, fine mill balls, and can be used in such situations: high temperature, anti-corrosion, electric insulation, anti-magnet, non-lubrication, it’s the ideal material for replacing steel balls under corrosive situation.
Product standard: 0.4mm~50.8mm(1/64"~2"), can provide other different kinds.
Provide grade:G3~G60
Notes:
1 The color is white, if necessary, we can provide yellow ones.
2 We have mass stock, can deliver anytime you want.
3 Can meet the requirements of various non-standard sizes
4 Coefficient of thermal expansion of zirconic is 10.5×106/℃, close to the coefficient of thermal expansion of metal, match up with metal but dimensional changes a lot under different temperature, so in some critical situations it’s not as stable as silicon nitride.
Ceramic ball accuracy class standard( international standard IS03290~2001）
grade | Primary particle difference | Circular degree | roughness | Color difference | Distance between gauge | gauge | Distance between subgauge | subgauge |
3 | 0.08 | 0.08 | 0.01 | 0.13 | 0.5 | -5,…-0.5,0,0.5…+5 | 0.1 | -0.2,-0.1,0,+0.1,+0.2 |
5 | 0.13 | 0.13 | 0.014 | 0.25 | 1 | -5,…-0.5,0,0.5…+5 | 0.2 | -0.4,-0.2,0,+0.2,+0.4 |
10 | 0.25 | 0.25 | 0.02 | 0.5 | 1 | -9,…-1,0,+1…+9 | 0.2 | -0.4,-0.2,0,+0.2,+0.4 |
16 | 0.4 | 0.4 | 0.025 | 0.8 | 2 | -10,…-2,0,+2…+10 | 0.4 | -0.8,-0.4,0,+0.4,+0.8 |
20 | 0.5 | 0.5 | 0.032 | 1 | 2 | -10,…-2,0,+2…+10 | 0.4 | -0.8,-0.4,0,+0.4,+0.8 |
28 | 0.7 | 0.7 | 0.05 | 1.4 | 2 | -12,…-2,0,+2…+12 | 0.4 | -0.8,-0.4,0,+0.4,+0.8 |
40 | 1 | 1 | 0.06 | 2 | 4 | -16,…-4,0,+4…+16 | 0.8 | -1.6,-0.8,0,+0.8,+1.6 |
60 | 1.5 | 1.5 | 0.08 | 3 | 6 | -18,…-6,0,+6…+18 | 1.2 | -2,-1.2,0,+1.2,+2 |
100 | 2.5 | 2.5 | 0.1 | 5 | 10 | -40,…-10,0,+10…+40 | 2 | -4,-2,0,+2,+4 |
200 | 5 | 5 | 0.15 | 10 | 15 | -60,…-15,0,+15…+60 | 3 | -6,-3,0,+3,+6 |
500 | 12.5 | 12.5 | 25 | |||||
1000 | 25 | 25 | 50 |
